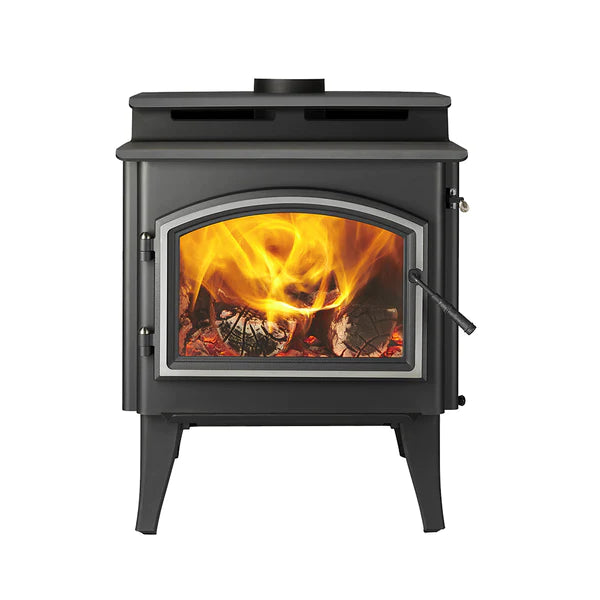

5700 Step Top Wood Stove
Please contact your nearest location for more details on purchasing this product.
- Description
- Specifications
- Downloads
- Venting Notes
The 5700 Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control, and easily blends with the Quadra-Fire Four-Point Burn System. Embrace the 5700’s powerful, money-saving, efficient wood stove performance.
Features
- Heat 1,400-3,700 sq ft with 72,100 BTUs*, based on climate and home efficiency
- Low emission levels of 1.8 grams per hour, certified by the EPA
- 3.0 cu ft firebox capacity / recommended 22" log length
- Up to 15 hours of burn time from each load of fuel†
- Easy start-up
- Also available in these sizes: 4300 Step Top
| Appliance Width | 27" |
|---|---|
| Appliance Height | 37-11/16" |
| Appliance Depth1 | 32-3/8" |
| Fuel Type | Wood |
| Heating Capacity3 | 1,400 - 3,700 sq ft |
| Viewing Area | 187 sq in |
| Efficiency5 | LHV 80%, HHV 74% |
| Emissions | 1.8 grams/hour |
