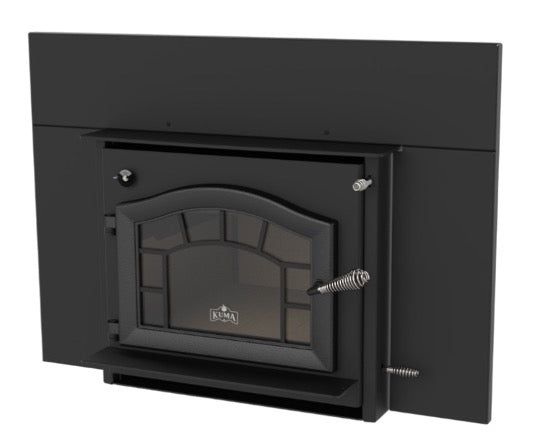

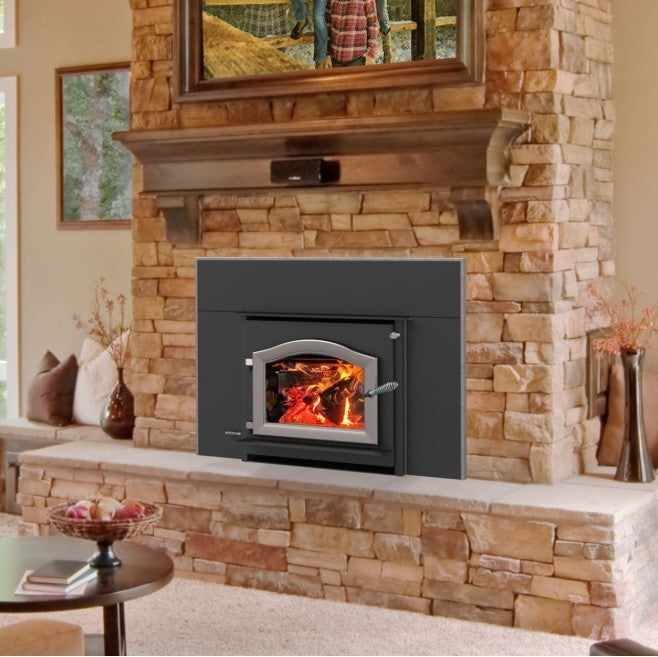

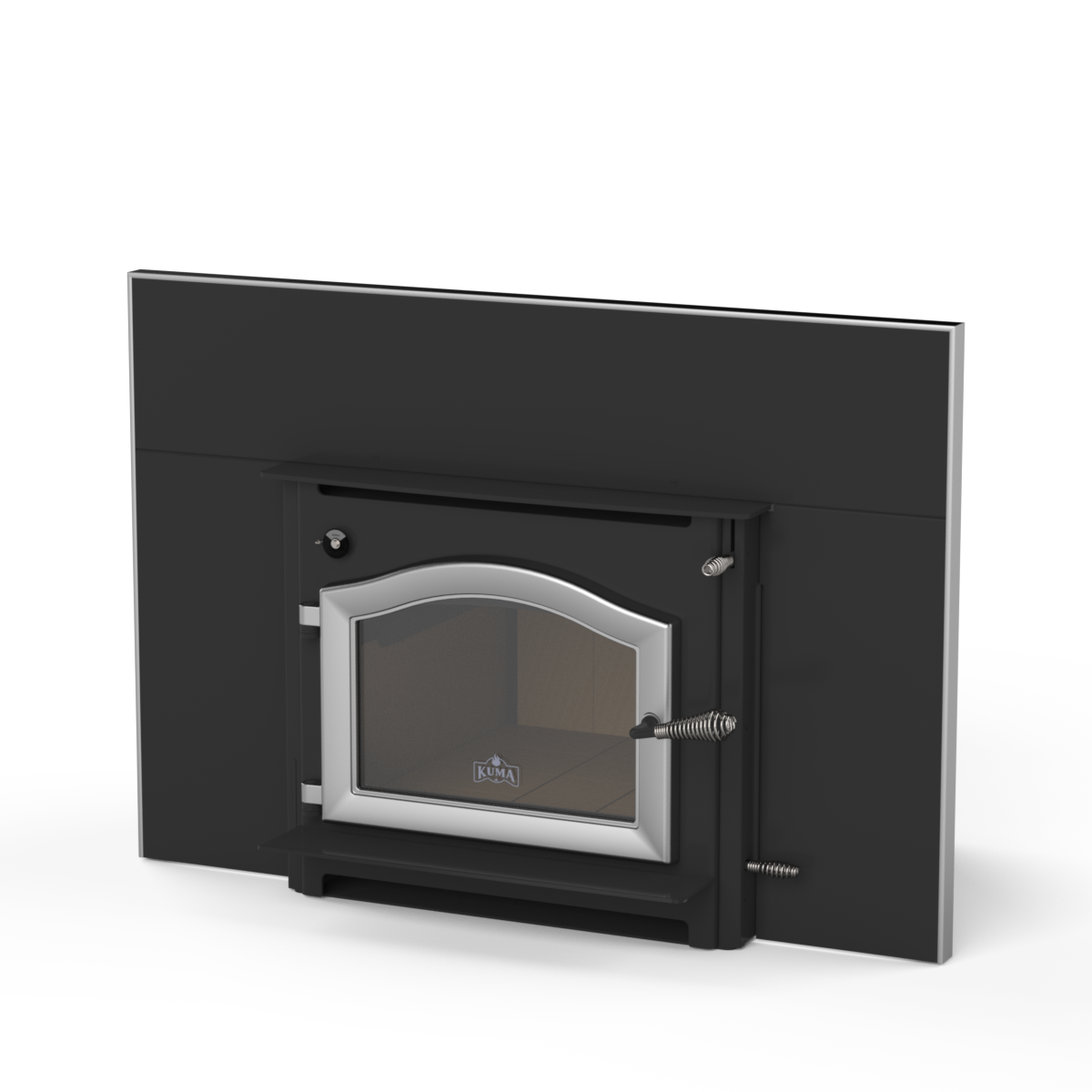

Cascade LE Insert
Please contact your nearest location for more details on purchasing this product.
The Cascade LE can be installed in a masonry or factory-built (zero-clearance) fireplace w... Read More
- Description
- Specifications
- Dimensions
- Downloads
- Venting Notes
The Cascade LE can be installed in a masonry or factory-built (zero-clearance) fireplace with the use of a 6" flue liner and is capable of heating 2600 square feet or more. Our Kuma Cascade LE insert will upgrade your fireplace into
an exceptionally efficient home heating center.
an exceptionally efficient home heating center.
- Wood Length: 18"
- Firebox Size: 2.5 ft3
- Burn Time: 12 hours
- Cordwood BTU's: 82,000
(30,308 EPA est.)* - Efficiency (HHV): 79.4%
- Efficiency (LHV): 86%
- Particulate Emissions: 1.13 g/hr
- Heating Capacity: 2200 - 2800 ft2
- Flue Size: 6"
- Width: 26-1/8"
- Height: 21-11/16"
- Depth: 24"
- Weight: 450 lbs
- EPA 2020 Certified
- UL Safety tested
- For use in masonry or factory-built fireplaces
- Manufactured home approved
- Outside air ready
- Blower Option
- 160 CFM Variable Speed
- Thermostat Controlled
- Available with a variety of door styles
- Minimum fireplace dimensions:
H:22.5" W:27" D:14"
* The amount of fuel that you load into your stove and how often you load it will affect your stove’s maximum heat output. A 25 lb. load of fuel left to burn for 3.5 hrs will produce an EPA estimated 30,308 BTU’s/Hr. Larger or more frequent loads will produce up to 82,000 BTU’s/Hr.
